Receseed Wall Standards Guidebook

What is a Recessed or Concealed Wall Standard?

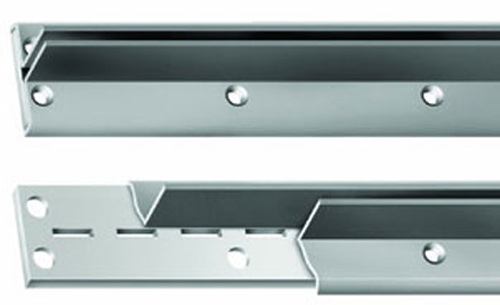

Recessed Wall Standards, also known as Concealed Wall Standards are ideal for stores that prefer the look of hidden hardware. Recessed standards are designed so that after installation majority of the wall hardware is unseen. This is achieved by mounting the “T” shaped recessed standard into the wall stud and your wall panels are then mounted on both sides on top of the concealed standard. Once installed shoppers only see a thin vertical line where the slotting or your wall hardware accessories goes. These Concealed Wall Standards feature heavy duty steel construction.

Recessed Wall Standards are a favorite perimeter wall treatment of:

Bridal & Formal Wear Shops
Children's Wear Stores
Clothing Boutiques
Department Stores

Gift Shops
Men's Clothing Stores
Sportswear Stores

Zinc
Finish

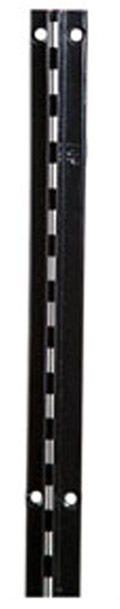

Black Epoxy
Finish

How Do I Select The Right Recessed Standard?

When buying Recessed Standards it is important to match the type of standard to you the wall material that you are using in your store. Concealed standards come in different slotting. There are different concealed standards made to work with drywall, sheet rock and other wall paneling or slatwall backings. Continue to the next sections to learn more about the different concealed standards available for different wall applications.

Recessed Standards For Drywall, Sheet Rock And Wall Board

Concealed Recessed Standards

If you are using standards with drywall, sheet rock or wall paneling which measures 5/8 inch in depth you will need recessed or concealed standards measuring 11/16 inch in depth. These concealed recessed standards are available in 6 feet and 8 feet high lengths. Choose either a black or zinc finish.

Once you have matched the type of Recessed Standard you need for your wall application, you need to choose the size slotting you need. Concealed Standards – 11/16 inch (For Drywall, Sheet Rock & Wall Board) come available in black or zinc colors in two different slot sizes. Recessed Wall Standards offer the same versatility as slotted standards in that they can accept a range of wall hardware display accessories. You may add shelf brackets, shelving, faceouts including waterfalls as well as hang rails.

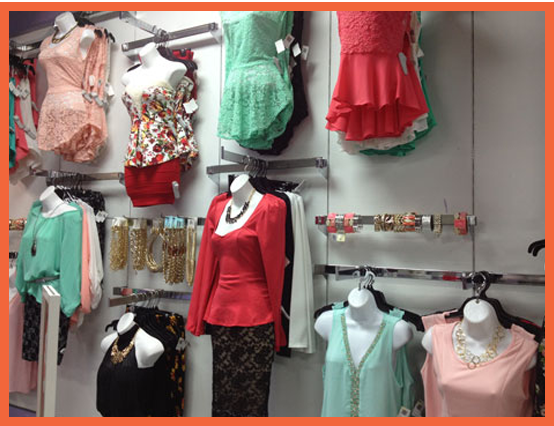

Shown Above: Recessed Standard with Solid Surface Wall Board

Medium Duty B Line

½ inch on 1 inch on center slotting allows you to adjust your recessed wall accessories in 1 inch increments. For ½ inch on 1 inch on center slotting choose from our Medium Duty B-Line face-outs, brackets, etc. that fit ½ inch on 1 inch slots.

To shop for 11/16 inch Recessed Standards and our Medium Duty B Line Accessories click here.

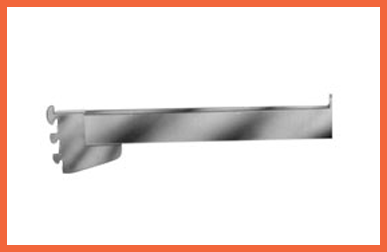

Hangrail Bracket 12"

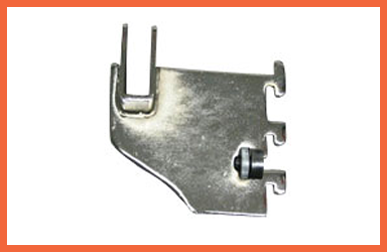

Hangrail Bracket 3"

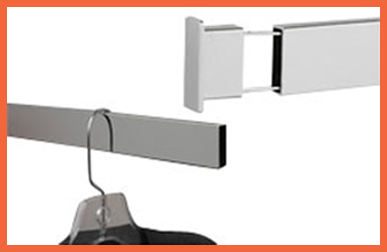

Hangrails & Accessories

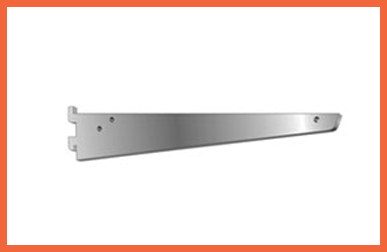

Shelf Bracket

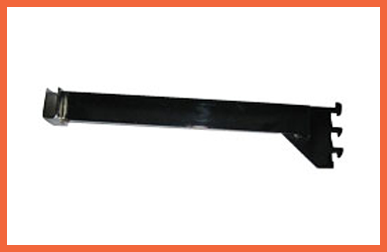

Faceout

Heavy Duty Line

1 inch on 2 inch on center slotting lets you adjust your concealed wall accessories in increments of 2 inches apart. If you have 1 inch on 2 inch slotting on center slotting you should choose Heavy Duty Line of brackets, face-outs and other wall standard hardware that fits 1 inch on 2 inch slotting.

To shop for 11/16 inch Recessed Standards and our Heavy Duty Line of Accessories click here.

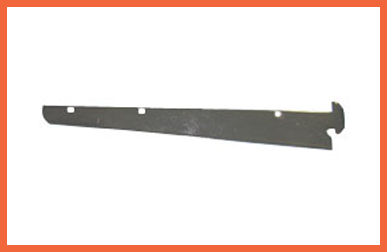

Shelf Bracket

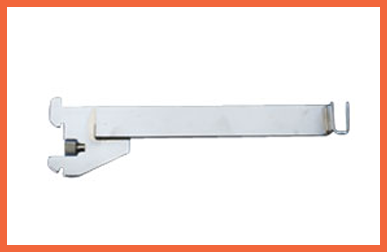

Hangrail Bracket 12"

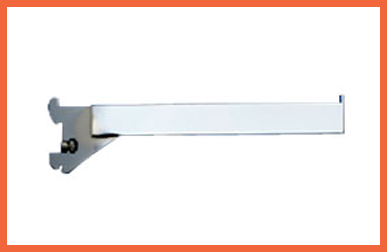

Faceout 12"

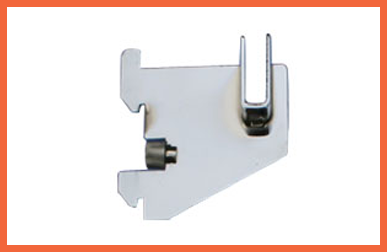

Hangrail Bracket 3"

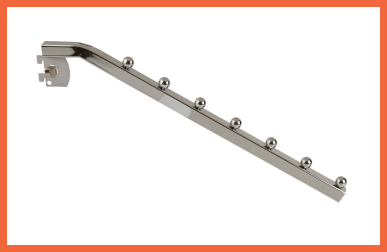

7 Ball Waterfall

Hangrails & Accessories

Recessed Standards For Drywall, Sheet Rock And Wall Board

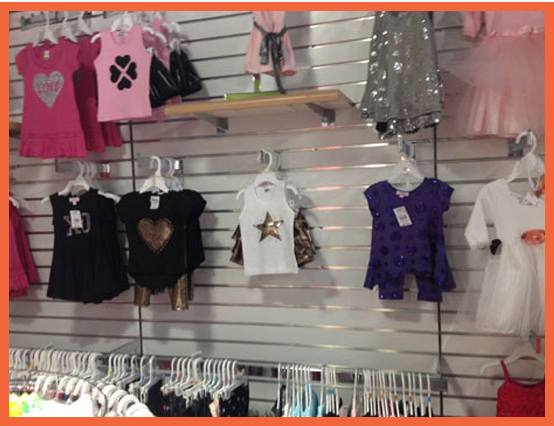

Recessed Standard with Slatwall Panels

If you are planning to use concealed standards with Slatwall tor Wall Boards that is ¾ inch in depth, you will need to choose recessed standards that measure 13/16 inch deep. These concealed recessed standards are available in 6 feet and 8 feet high lengths. Choose either a black or zinc finish.

Once you have matched the type of Recessed Standard you need for your wall application, you need to choose the size slotting you need. Concealed Standards – 13/16 inch (for Slatwall or Wall Board) and 13/16 inch for come available in black or zinc colors and in two different slot sizes: Medium Duty B Line, and Heavy Duty Line.

Medium Duty B Line

½ inch on 1 inch on center slotting allows you to adjust your recessed wall accessories in 1 inch increments.

To shop for 13/16 inch Recessed Standards and our Medium Duty B Line Accessories click here.

Hangrail Bracket 12"

Hangrail Bracket 3"

Hangrails & Accessories

Shelf Bracket

Faceout

Heavy Duty Line

1 inch on 2 inch on center slotting lets you adjust your concealed wall accessories in increments of 2 inches apart.

To shop for 13/16 inch Recessed Standards and our Heavy Duty Line of Accessories click here.

Shelf Bracket

Hangrail Bracket 12"

Faceout 12"

Hangrail Bracket 3"

7 Ball Waterfall

Hangrails & Accessories

Search Results for {{ search.submittedTerm }}

Connect With Us

How To Order Recessed Wall Standards

Your Recessed Wall Standards Headquarters

Receseed Wall Standards Guidebook

What is a Recessed or Concealed Wall Standard?

How Do I Select The Right Recessed Standard?

Recessed Standards For Drywall, Sheet Rock And Wall Board

Concealed Recessed Standards

Shown Above: Recessed Standard with Solid Surface Wall Board

Medium Duty B Line

Heavy Duty Line

Recessed Standards For Drywall, Sheet Rock And Wall Board

Recessed Standard with Slatwall Panels

Medium Duty B Line

Heavy Duty Line

Need more help? Contact our Retail Store Recessed Wall Hardware Experts for advice by phone at 1-888-957-4353 or email [email protected]
